4.12 Block Options

| TOC| Program Guide | Geological Modelling | Geological Visualisations | Geophysical Modelling |Geophysical Visualisations | Tools | File Formats | Tutorials | Index | Bugs |

This window provides access to options which control the resolution, position and shape of geological and geophysical calculations.



Block View Options Window

GROUP

NAME

FUNCTION

View Selection

Current

Menu of named sets of distinct block parameters



New...

Add new view to list


Delete

Delete currently selected view from list

Origin

X

X position of upper south west corner of block



Y

Y position of upper south west corner of block



Z

Z position of upper south west corner of block

Dimensions

X

X Dimension of Block in metres



Y

Y Dimension of Block in metres



Z

Z Dimension of Block in metres

Cube Size

Geology

Cube size for all geological visualisations



Geophysics

Cube size for all geophysical calculations

False Origin

Easting

This value will be added to ERMapper and Geosoft format Easting (X) coordinates to provide allow real world coordinates to be used



Northing

This value will be added to ERMapper and Geosoft format Northing (Y) coordinates to provide allow real world coordinates to be used

Use Topography



This check box causes a topography grid file to be loaded

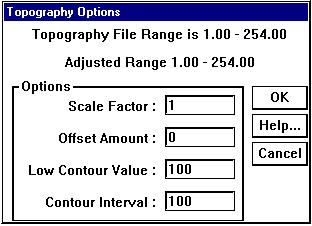

Topography Scaling Window

If the Use Topography button is checked, the Topography Scaling window will appear. This window allows the user to scale the topography file as it is loaded. This window may be accessed Use Topography check box in the Geology Options window.

Topography Scaling Window

GROUP

NAME

FUNCTION

Options

Scale Factor

Gain for topography values



Offset Amount

Offset for topography values



Low Contour Value

Lowest contour level for maps showing topographic contours



Contour Interval

Contour interval for maps showing topographic contours
